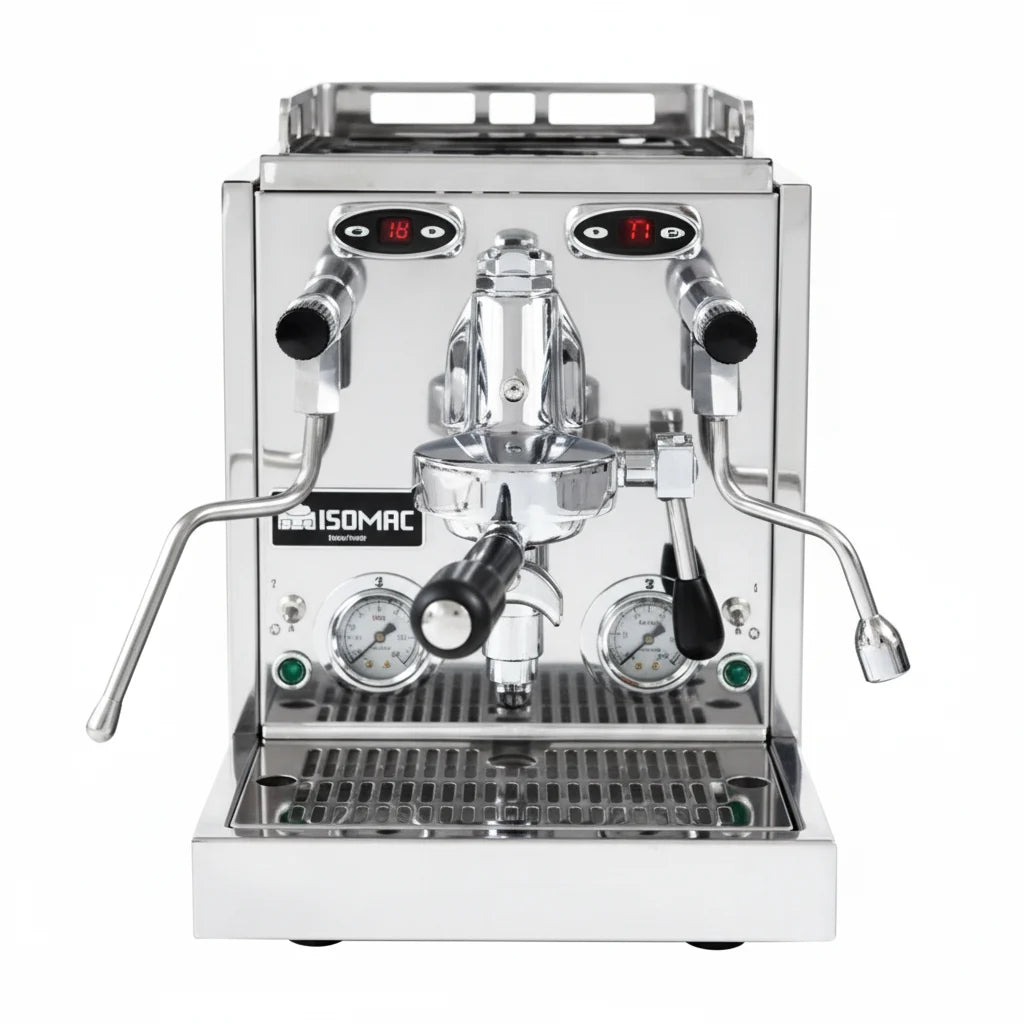

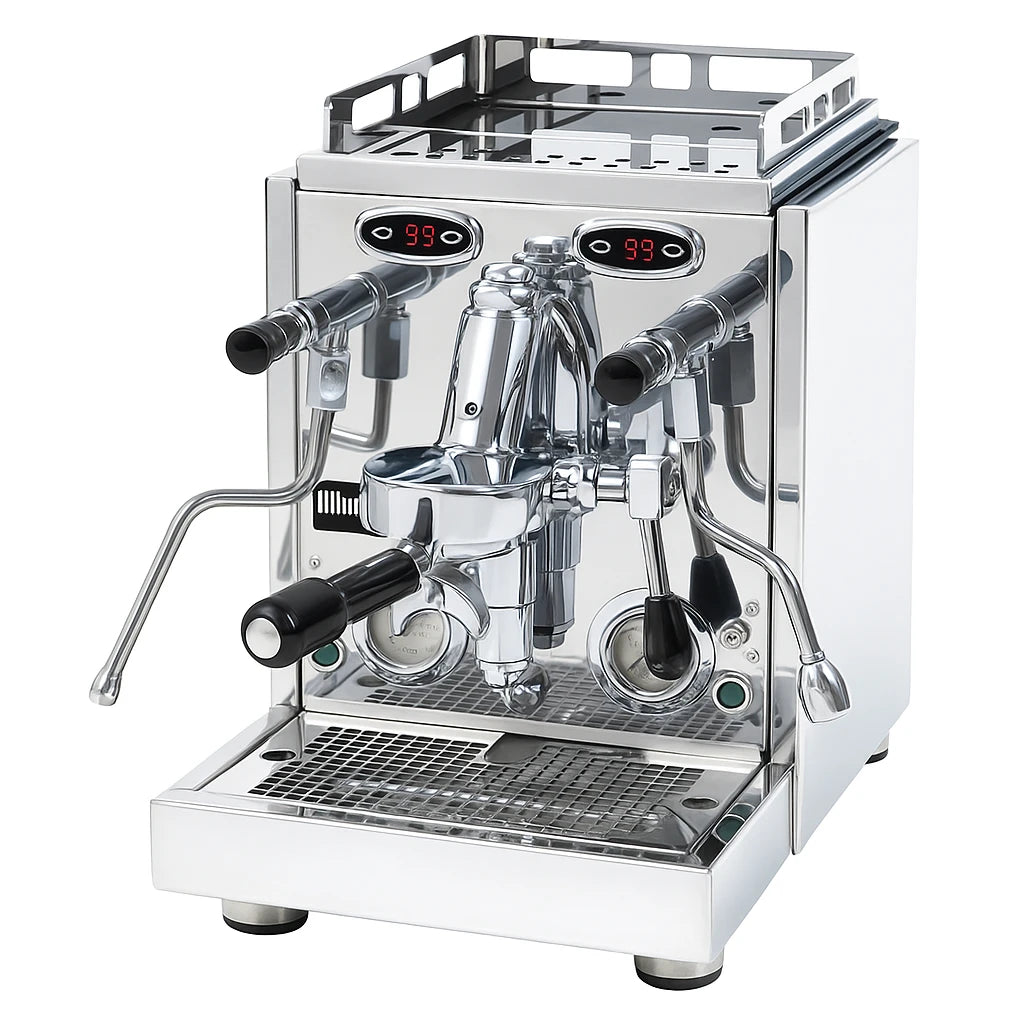

ISOMAC Professional PID Twin Boiler - Coffee Machine

The Professional 2 Boiler PID is a dual boiler espresso cappuccino machines with PID temperature control.

Better temperature stability with the dedicated and independent espresso boiler and PID control.

Better and increased level of steam pressure and hot water supply through the dedicated and independent service boiler controlled by PID

Full Commercial rotary pump and the option of direct water connection or water tank supply complete the technical advanced main characteristics.

TECHNICAL

Stainless steel shiny bod. (AISI 304)
Press forged chromed brass groups with valves infusion chamber.
Dual boiler system for optimum coffee and steam / hot water performances.
Coffee Boiler: 0,6 lt (1000W – 220-240Vac) - (850W - 120Vac)
Service boiler: 1,8 lt (1300W – 220-240Vac) - (850W - 120Vac)
Electro professional rotary pump (not vibration type pump) with external pressure adjustment
Water supply 2.9 litre fresh water reservoir or alternatively by turning the control switch, steel braided direct water connection.
Electronic control reservoir water level.
Electronic automatic water level.
Electronic control of the boiler water level
Anti – vacuum valve.
Steam-wand anti sunburn
Hot water outlet anti burn
Manometer for the boiler pressure control.
Gauge for pump pressure control.
PID System
Manual reset safety thermostat
Width / depth / height 300 x 430 x 425 (mm)
Width / depth / height 330 x 425 x 425 (mm)
Power feeding 220-240 Volt 50Hz - 120 Volt 60Hz
Absorbed power 220-240 Volt 50Hz - 2400 W
Absorbed power 120 Volt 60Hz - 1800 W
